NICODOM IR Polymers All Package, 6701 spectra



China Colored EPDM Rubber Granules Infill Artificial Turf Breathable Fields for Tennis Court factory



“NICODOM IR Polymers All Package, 6701 spectra” is an advanced FTIR spectral database of 6701 FTIR (ATR) digital spectra of polymers, polymers additives, fibers, coatings, pigments, dyes and other related compounds used in polymer industry.



NICODOM IR Polymers All Package, 6701 spectra  consists of 4 independent libraries:



NICODOM IR Polymers and Additives, 3954 spectra

NICODOM IR Coatings (Industrial Paints), 890 spectra

NICODOM IR Fibers, 457 spectra

NICODOM IR Dyes and Pigments, 1400 spectra



This allows you to compare you unknown spectrum with separate libraries, group of libraries or with all libraries.



Download list of spectra.



The above mentioned libraries can be purchased separatelly or as a part of cost effective library package “NICODOM IR Polymers All Package, 6701 spectra“.



NICODOM IR Polymers and Additives, 3954 spectra







Download list of spectra.



Examples of compound types:



Polymers Additives (Acidity regulator, Inorganics, Adhesion Promotor, Aftertreatment agent for dyeings, Thinner, Wetting and dispersing agent, Anti bleeding agent, Anti gelling agent, Anti separation Additive, Anti settling Additive, Anti skinning agent, Antistatic Agent, Binder, Catalyst, Coalescent, Combination drier, Crease-prevention agent, Crosslinker, Deaerator, Defoamer, Dispersing Additive, Dyeing Auxiliaries, Emulsifier, Filler, Fixing agent, Flow and Leveling Additive, Foam Control Agents, Glue, Hardener, High Mw Dispersant, High temperature grease, Hydrophobizing agent, Chelating agent, Inhibitor and chelating agent, Interfacial Tension Modifier, Levelling Additive, Low foaming dispersing agent, surfactants, Moisture Scavenger, Moth and Beetle-proofing Agents for Wool, Oil, Pigment wetting Additive, Plasticizer, dispersant, Pot-life retarder, Preservative, Reactive Flexibizer/Diluent, Retarder for dyeing acrylic fibers, Rheology Additive, Scouring/wetting agent, Scratch and slip Additive, Slip and anti blocking agent, Slip and Flow Additive, Softener, Stabiliser, Surfactant, Thickener, Retarder, UV stabilizer, Wax, Wetting Agent

Natural and synthetic polymers (Cellulose derivatives, PES, PEG/PPG, Acrylates, PA, PB, PE, PP, PS, PU, Siloxanes, Halogenated polymers, Vinyl polymers, Resins synthetic and natural, Rubbers, Alkyds…)

Copolymers (ABS, Acrylates, BS, EPDM, EVA, PEPP, SAN…)

Monomers



The spectral library “NICODOM IR Polymers Starter, 931 spectra” is a set of spectra selected from “NICODOM IR Polymers and Additives, 3954 spectra” to build a simple low cost starter polymer database for begginners on the field of FTIR polymer analysis.





NICODOM IR Coatings (Industrial Paints),  1819 spectra



Biotech





Download list of spectra.



The infrared spectral library „NICODOM IR Coatings“ has been designed for laboratories studying composition of industrial coatings (paints).

We have sorted the samples into over 200 different categories.

„NICODOM IR Coatings“  mainly includes examples of typical types of industrial/commercial paints like enamels, primers, lacqueres, powder coatings, stoving varnishes and many other compounds.



 NICODOM IR Fibers, 457 spectra







Download list of spectra.



Advanced collection of FTIR spectra of fibers. Contains Acetate, Acrylic, Animal, Natural, Nylon, Olefin, Polyester, Rayon, Mixed Fibers, and most other fiber types.







NICODOM IR Dyes and Pigments, 1400 spectra



Download list of spectra.



Advanced collection of FTIR spectra of Dyes and Pigments (Acid Dyes, Basic Dyes, Direct Dyes, Disperse Dyes, Fluorescent Brightener, Food Dyes, Mordant Dyes, Natural Dyes. Pigments (Pigment Synthetic, Pigment Japanese, Pigment Mineral, Pigment Historic, Pigment Earth, Pigment Inorganic, Pigment Glitter, Pigment Fluorescent), Reactive Dyes, Solvent Dyes, VAT Dyes, Ceramic Colorants)









The Nicodom FTIR spectra of polymers were collected using the FTIR Spectrometer Nexus 670 ™ (Thermo) and the Miracle™ single bounce ATR accessory (Pike Technologies) equipped by ZnSe or Si crystal.



The Nicodom spectral library of polymers features resolution of 4cm-1 in the spectral range 600-4000 cm-1, measurement time 1 minute, the instrument was purged by dried air.



The complete information is available in the full library version (not available in the demo list of compounds)



The last library update has been done 2011, the Nicodom IR Libraries include many new substances which came to market during the last decade.

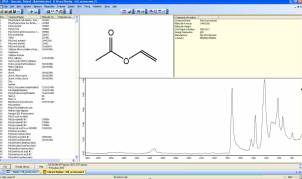

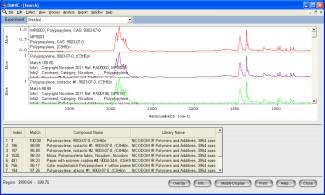

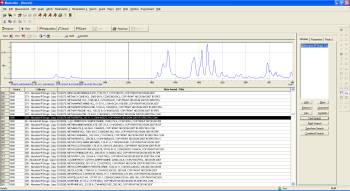

This FTIR spectra library is available as digital searchable library compatible with your spectroscopic software. Also it can be delivered with SEARCH software or in *.pdf format.



To download the list of spectra, to download a free demo library compatible with your software, to check the format compatibility as well as for pricelist, ordering info and information about all NICODOM IR/NIR Libraries and other NICODOM products please visit our webpage.



NICODOM IR Polymers All Package, 6701 spectra
